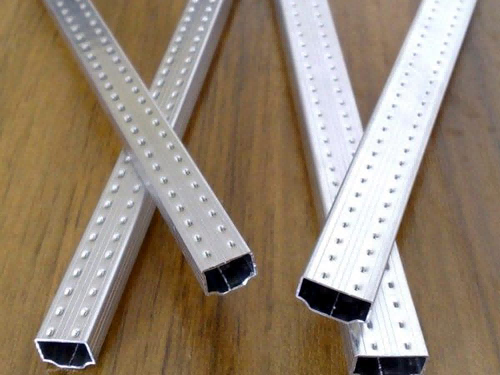

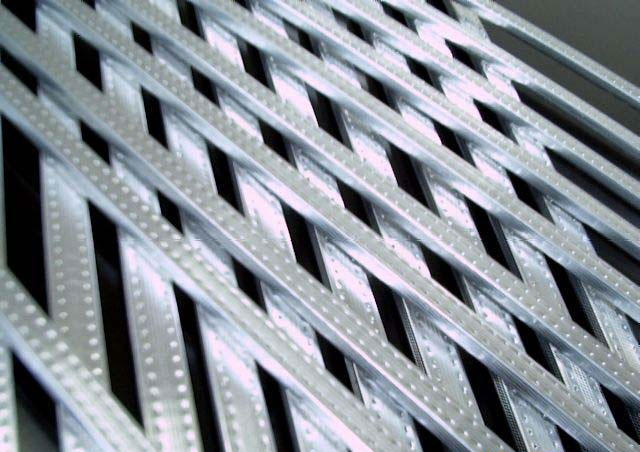

Aluminum Spacer Insulating Glass Material Bendable Curved
Model No.: 6A,10A,12A,16A
Brand: HH
Place of Origin：China
Width: 5.5mm,9.5mm,11.5mm,15.5mm
Payment Type：LC,T/T
Incoterm：FOB,CFR,CIF,EXW
Min Order：2000M
Port: Qingdao,Shanghai,Tianjin
1.Introduction of the product
Made from high-quality anti-corrosion 3003 aluminum, this product features smooth welding lines and a stable welding state. Its primary function is to evenly separate two or more glass pieces within insulated glass units, providing effective support.
2.Product advantages
(1) Adopts technology meeting ISO 9001:2008 standards.
(2) Aluminum spacer with 0.32mm and 0.35mm thickness, featuring anti-corrosion properties.
(3) Features uniquely designed profiles with excellent bending capabilities.
(4) Utilizes a distinctive surface treatment for improved sealing properties with sealants.
(5) High-frequency induction welded with continuous monitoring of welding seam quality using an eddy current system.
(6) Ensures no burrs or deformation after cutting, enhancing connectivity.
(7) Customizes logos according to specific customer requirements.
3.Product parameters are as follows
Type | Width(mm) | Height(mm) | Length 6m | Length 5m | Steel Connector |
Carton Box(m) | Carton Box(m) | ||||
6A | 5.5 | 6.5 | 2000 | 1670 | 10000pcs |
8A | 7.5 | 6.5 | 1900 | 1585 | 5000pcs |
9A | 8.5 | 6.5 | 1800 | 1500 | 5000pcs |
10A | 9.5 | 6.5 | 1680 | 1400 | 5000pcs |
11A | 10.5 | 6.5 | 1500 | 1250 | 5000pcs |
12A | 11.5 | 6.5 | 1320 | 1100 | 5000pcs |
15A | 14.5 | 6.5 | 1080 | 900 | 5000pcs |
16A | 15.5 | 6.5 | 1080 | 900 | 5000pcs |
4.Transportation and Packaging
5.FAQ
