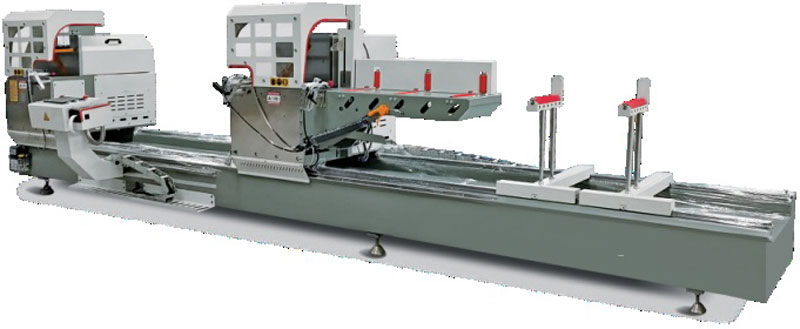

Aluminum Door and Window CNC Double Head Precision Cutting Saw

1.Introduction of products

This system is designed for cutting aluminum doors, windows, and curtain wall profiles with high precision and durability. It features imported square rails for accuracy and longevity, and a gas-liquid damping cylinder ensures smooth movement of the saw blade during operation. The moving head utilizes a large lead ball screw mechanism for precise transmission, ensuring stable and accurate positioning. With intelligent numerical control technology, it can automatically cut profiles of various specifications and sizes, including angled cuts at 45 degrees and 90 degrees.

2.Product advantages

(1) The advanced digital control system ensures precise cutting sizes and lengths with digital accuracy.

(2) Multiple sets of data can be input simultaneously to enable continuous and efficient cutting operations, ensuring stability.

(3) Horizontal movement is facilitated by imported precision racks for precise positioning, complemented by middle and tail lifts to enhance cutting stability.

(4) Utilizes special imported carbide saw blades; the feed motion guide rail features imported linear guides and an oil injection system for smooth operation.

(5) Saw blade feed is powered by a hydraulic damping cylinder, providing stable and powerful cutting performance; equipped with a wedge-shaped belt for reliable quality.

(6) Offers a large processing range with a cutting length capability of up to 4200mm, supporting cutting angles of 90°, 45°, and optional 67.5°.

(7) Automatic switching between the three angles ensures user-friendly operation and simplicity.

3.Product parameters are as follows

4.Transportation and Packaging

5.FAQ
